Back to projectsStructural Strengthening

FRP Carbon Wrapping

Kaduna 2023

Project Overview

Combined carbon fiber wrapping and carbon laminate strengthening for the Nigerian Railway Station (NRS) in Kaduna. The intervention restored structural capacity to beams and columns affected by deterioration and increased loading.

Scope of Work

Structural capacity assessment
Carbon wrapping of columns
Carbon laminate bonding of beams
Final inspection and documentation

Discuss a similar project

Site Gallery

Photographs from the FRP Carbon Wrapping works on site.

Technician bonding carbon fibre fabric to a column at NRS Kaduna

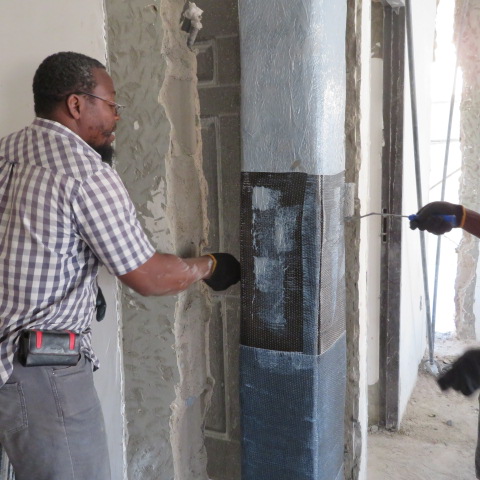

Crew applying epoxy and wrapping carbon fabric around a concrete column

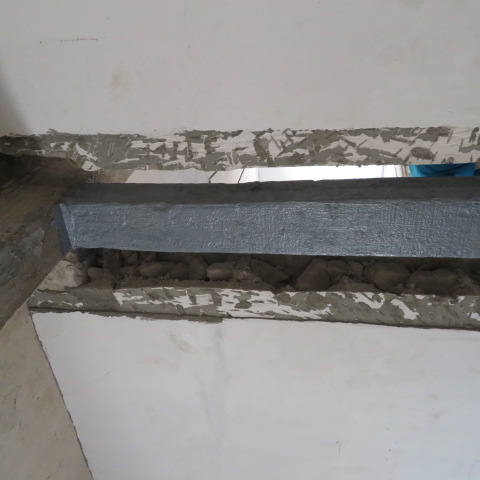

Exposed column and beam with reinforcement prepared for strengthening

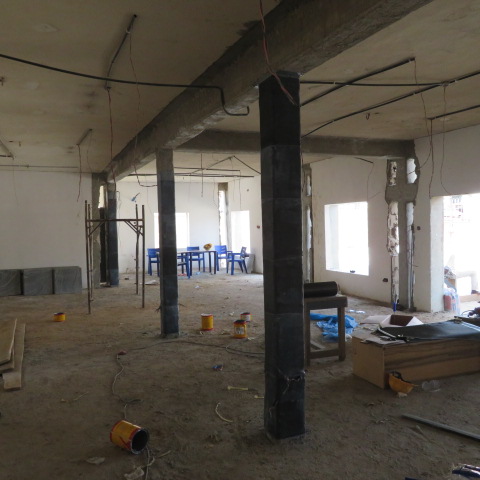

Wrapped and finished columns across the station floor plate

Operatives applying protective coating to a strengthened column

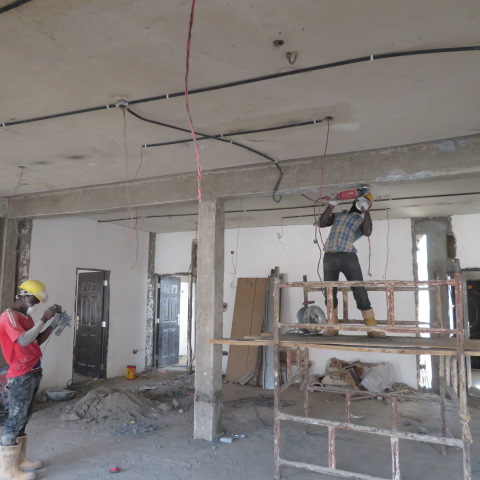

Team cutting a chase in the soffit for carbon laminate installation

Concrete breakout around a column ahead of repair works

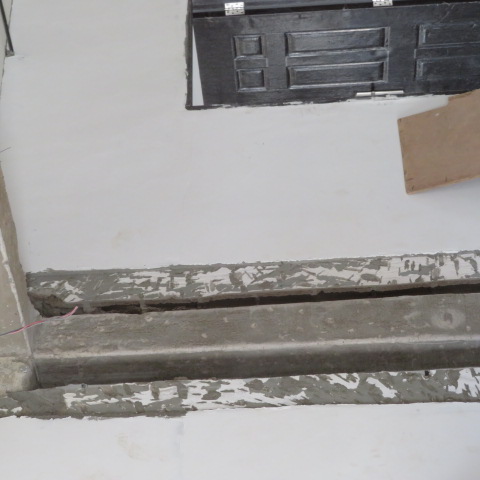

Prepared beam and column faces after removal of defective concrete

Operatives breaking out deteriorated concrete from a beam soffit

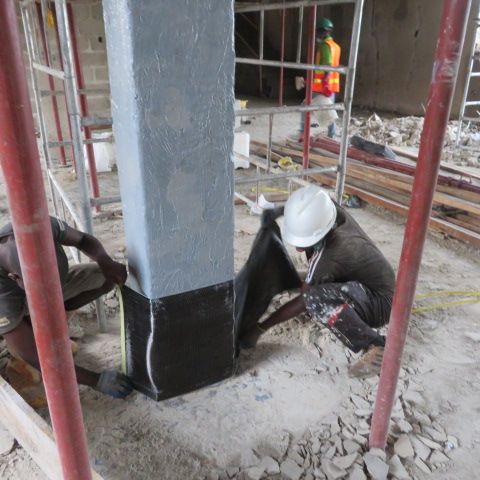

Crew wrapping carbon fibre fabric around the base of a primed column

Two operatives stretching carbon fabric around a column base

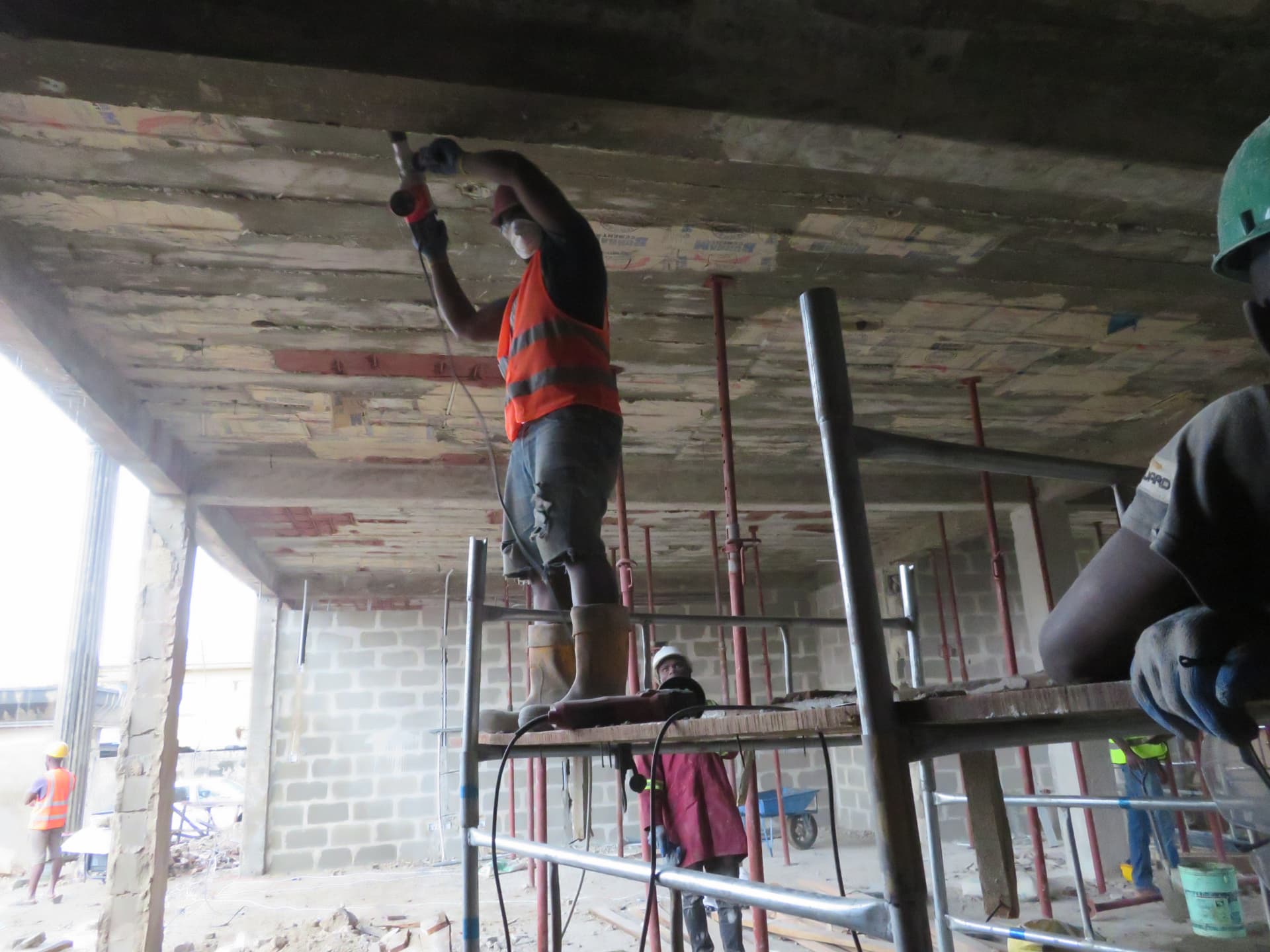

Operative scabbling a slab soffit from a scaffold platform

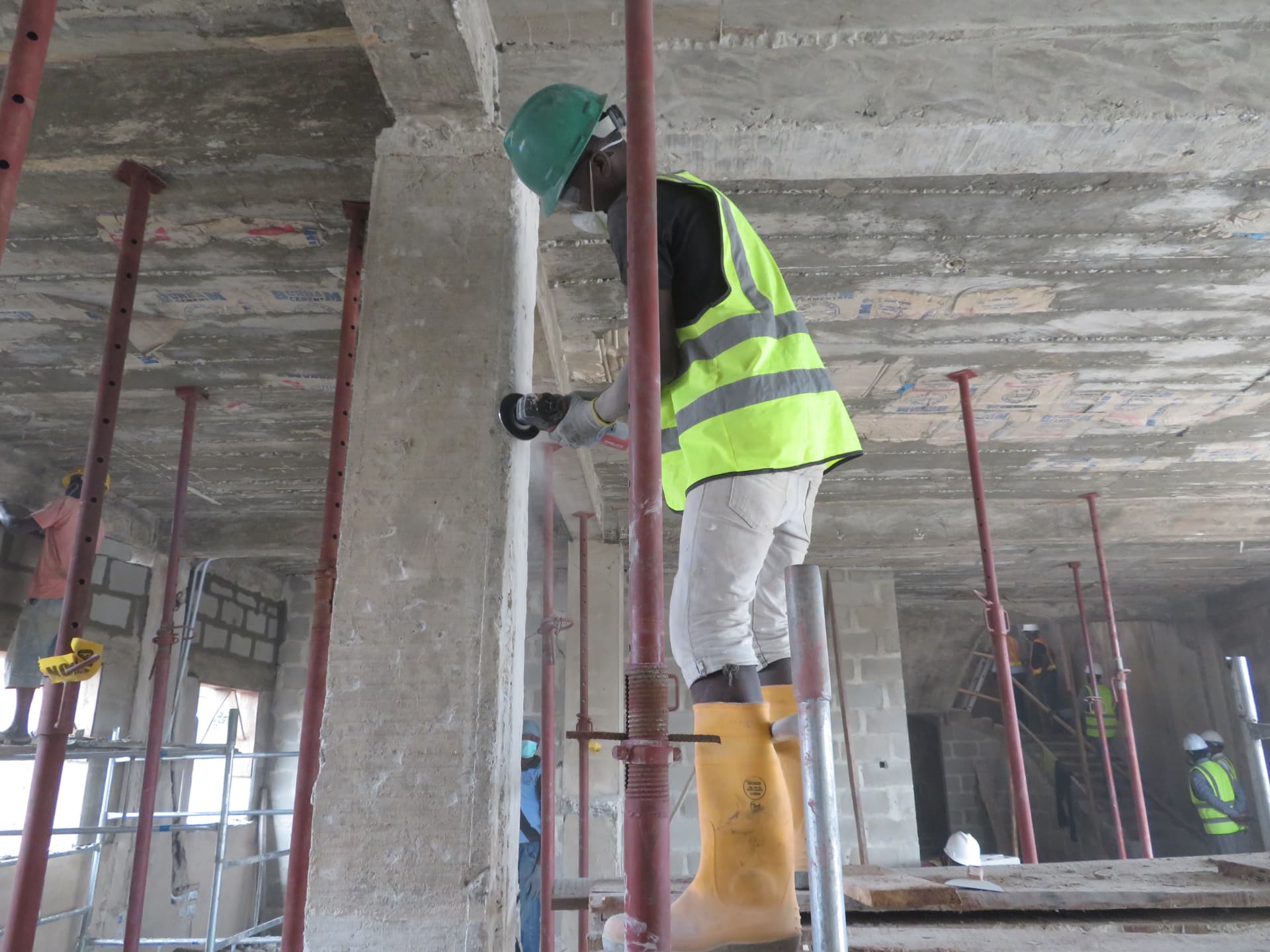

Engineer grinding a beam face in preparation for strengthening

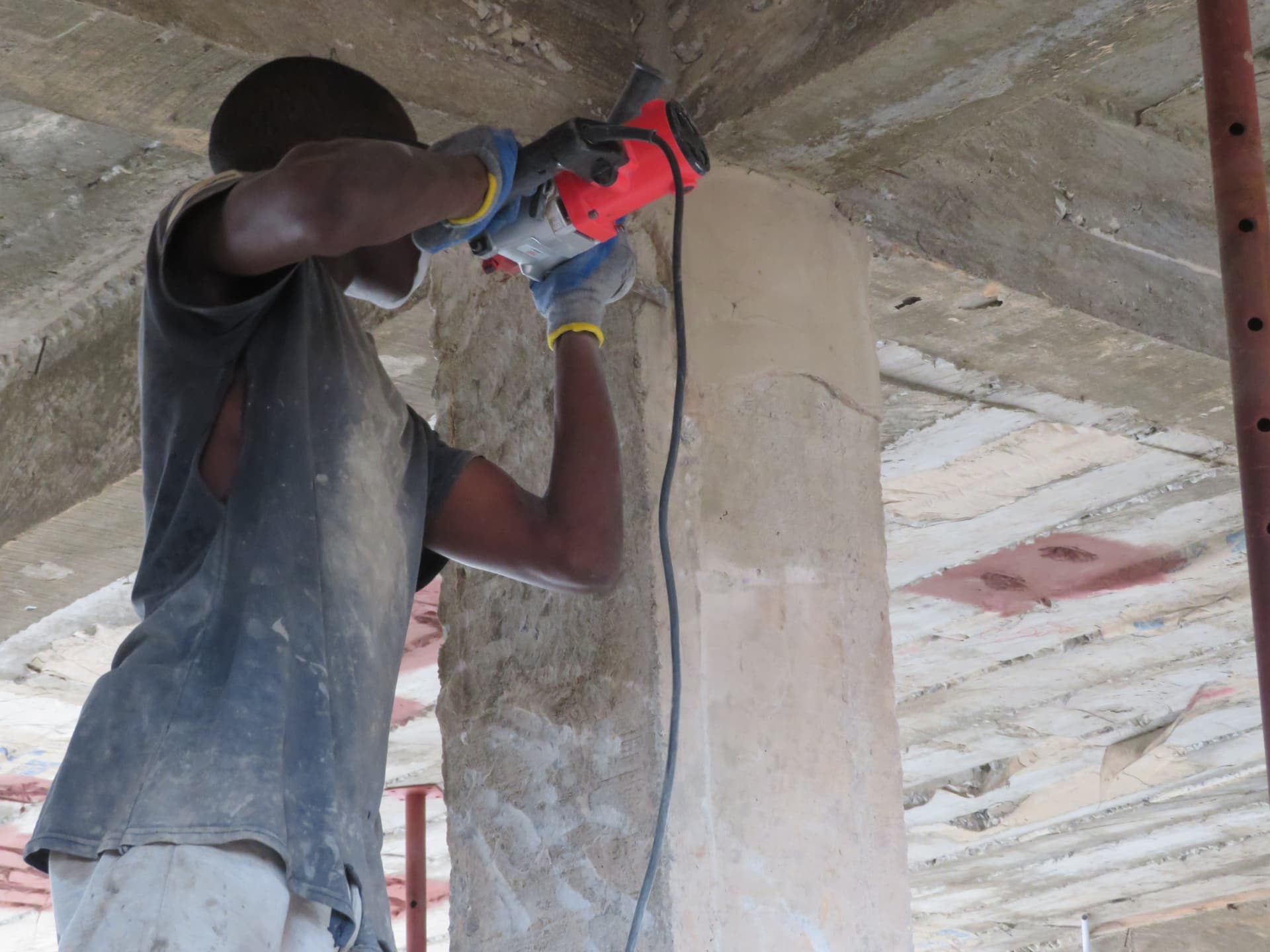

Worker cutting back defective concrete on a column with a reciprocating saw

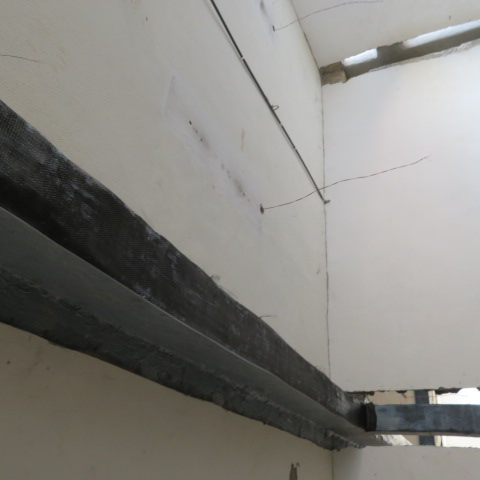

Completed carbon fibre wrapped beam running along the ceiling

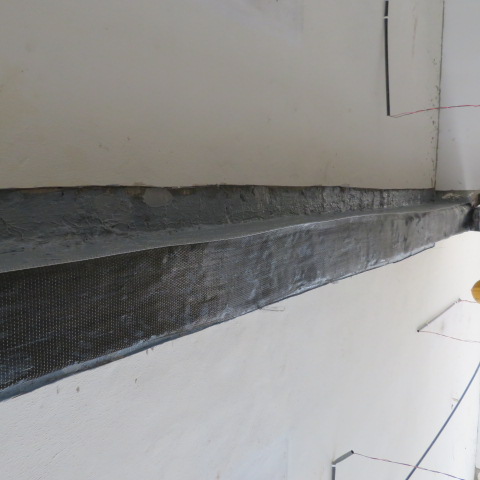

Underside view of a beam fully wrapped in carbon fibre fabric

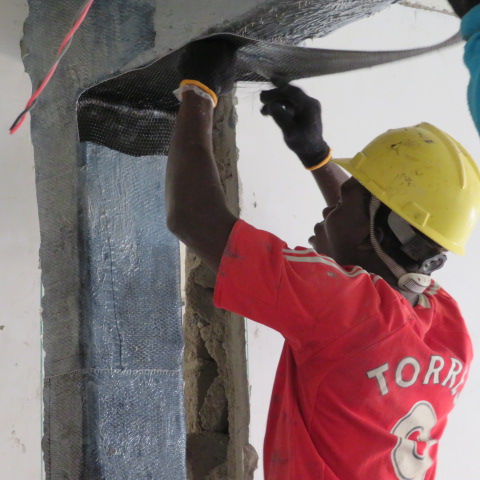

Technician bonding carbon fibre sheet to a beam soffit

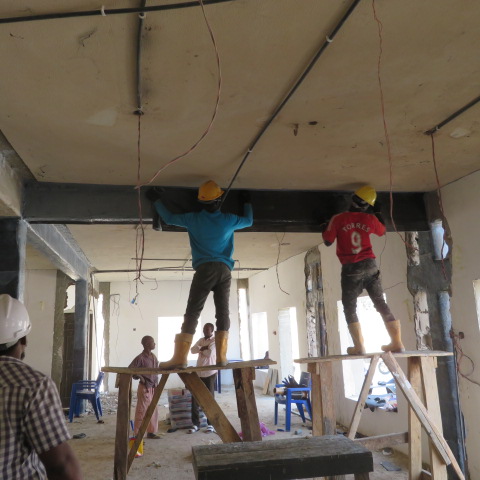

Team installing carbon fabric to a beam from working platforms

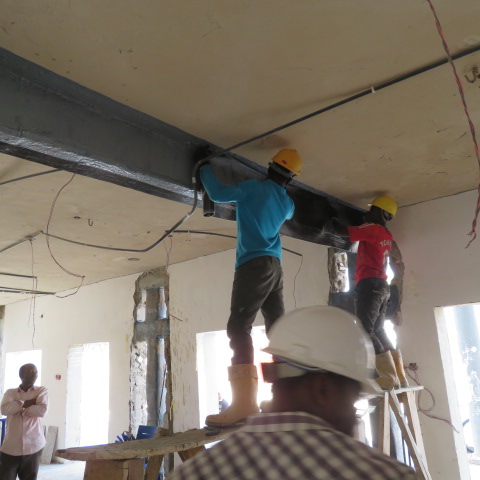

Operatives consolidating carbon fibre wrap along a strengthened beam
