Carbo Laminate of Beam — Residential Building

Residential Estate 2022

Carbo Laminate of Beam — Residential Building

Project Overview

Structural upgrade of a residential building using carbon fiber laminate (CFL) reinforcement. We bonded high-strength carbon laminates to existing concrete beams to increase flexural capacity without adding significant dead load.

Scope of Work

Structural assessment and design
Concrete surface preparation
Carbon laminate bonding
Curing and pull-off testing

Discuss a similar project

Site Gallery

Photographs from the Carbo Laminate of Beam — Residential Building works on site.

Technicians applying epoxy adhesive to a carbon laminate strip on site

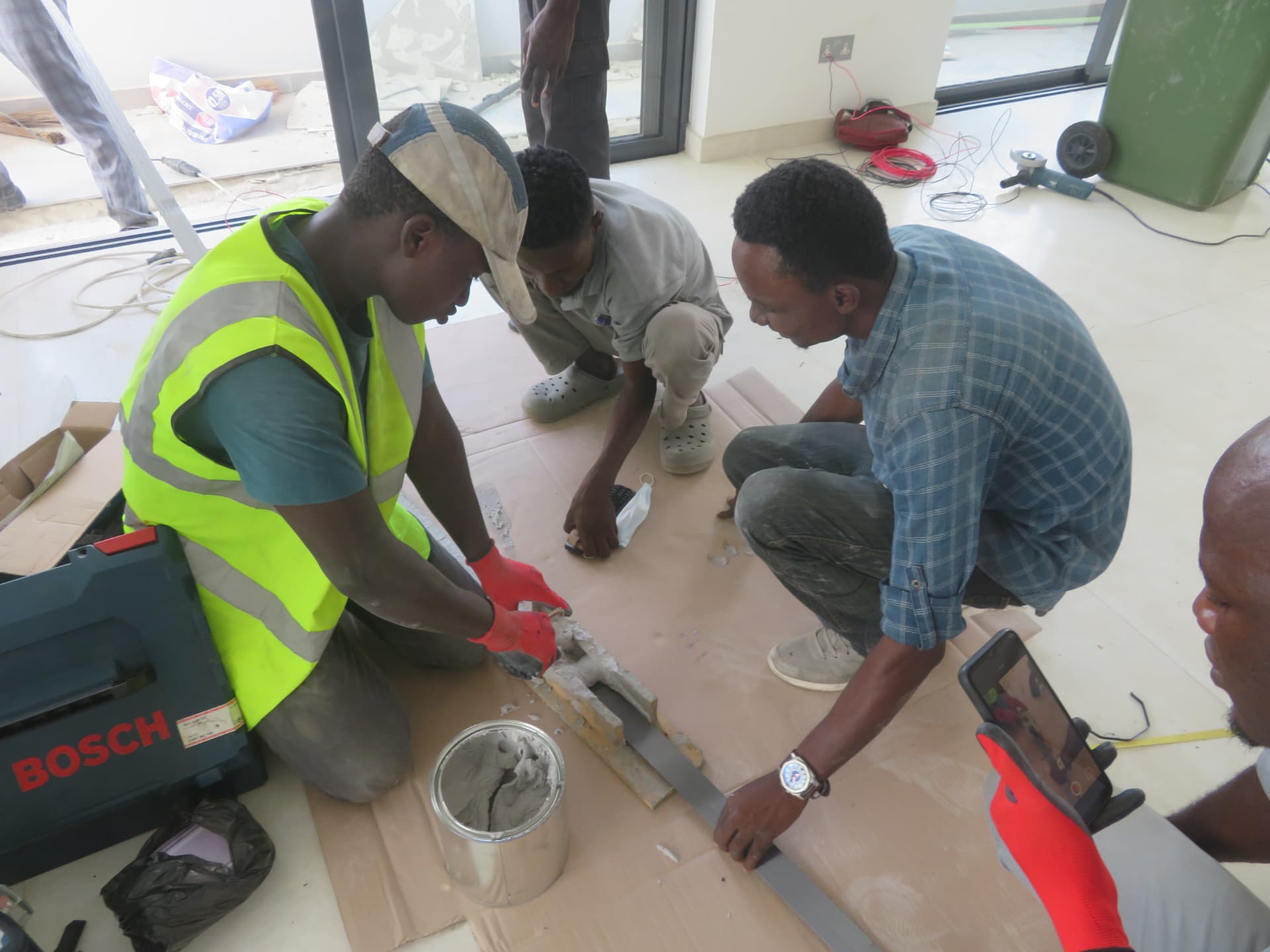

Team preparing two-component epoxy and bedding the carbon laminate

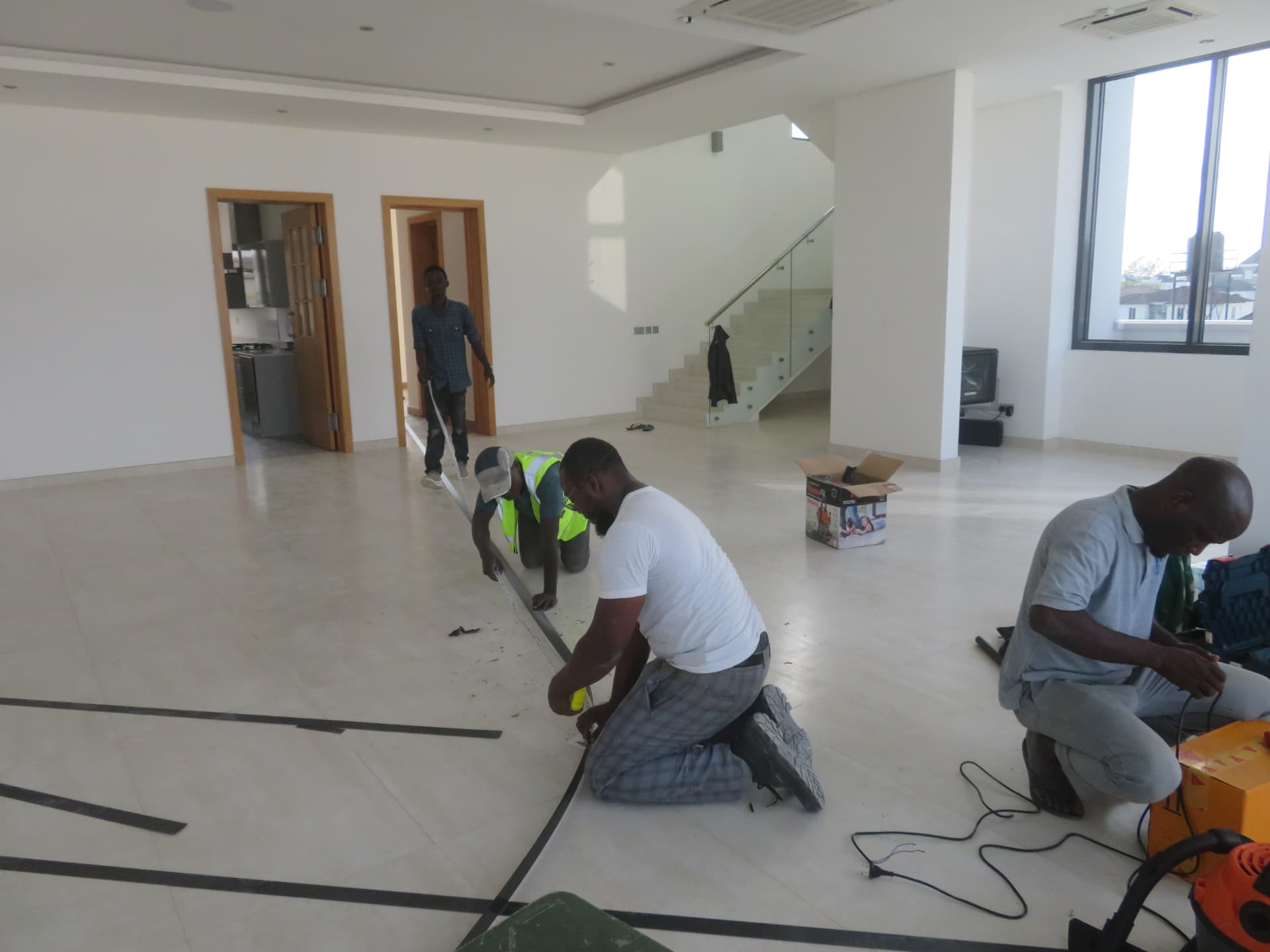

Setting out and measuring carbon laminate strips across the floor slab

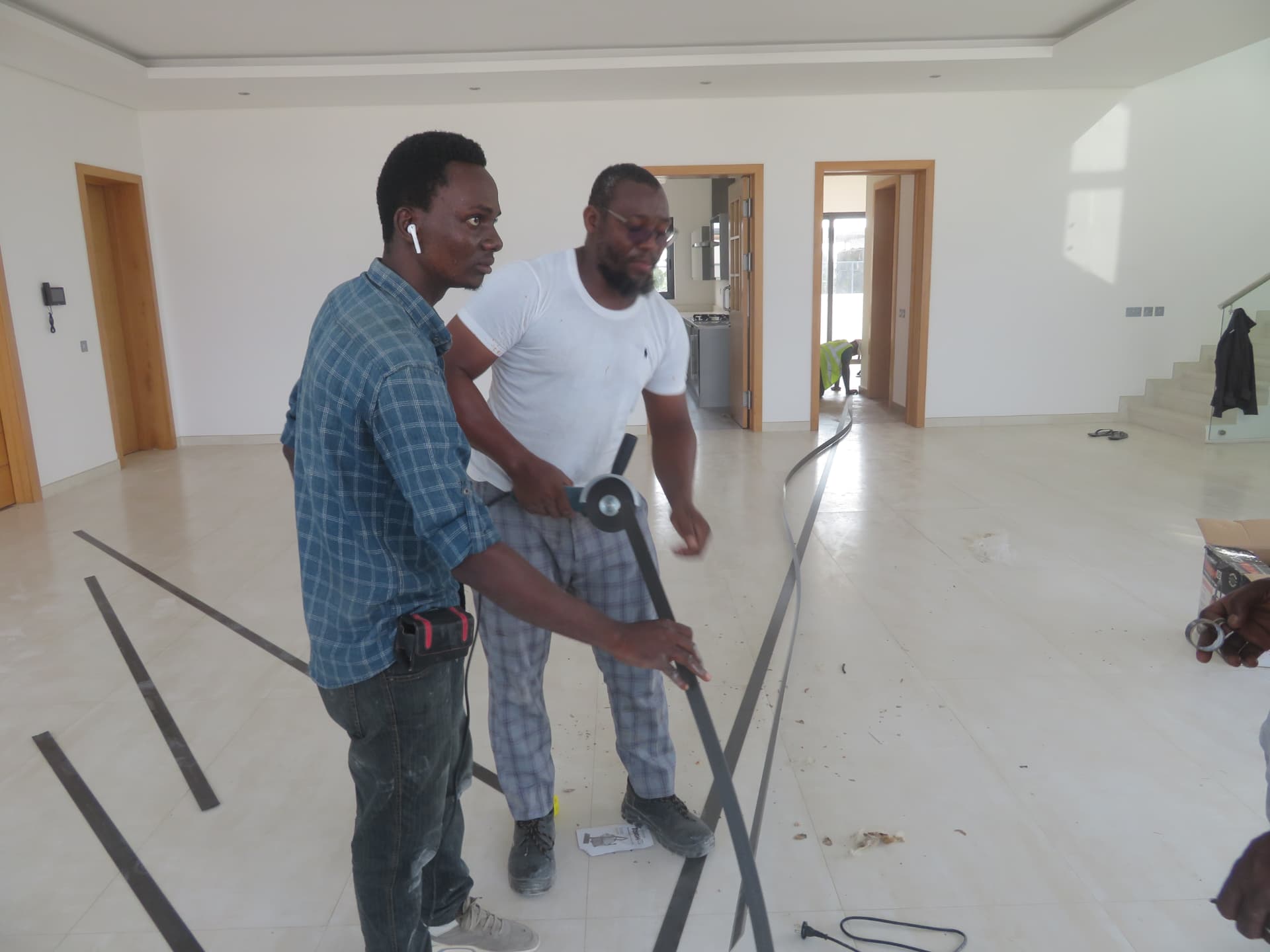

Cutting carbon fibre laminate strips to length before installation

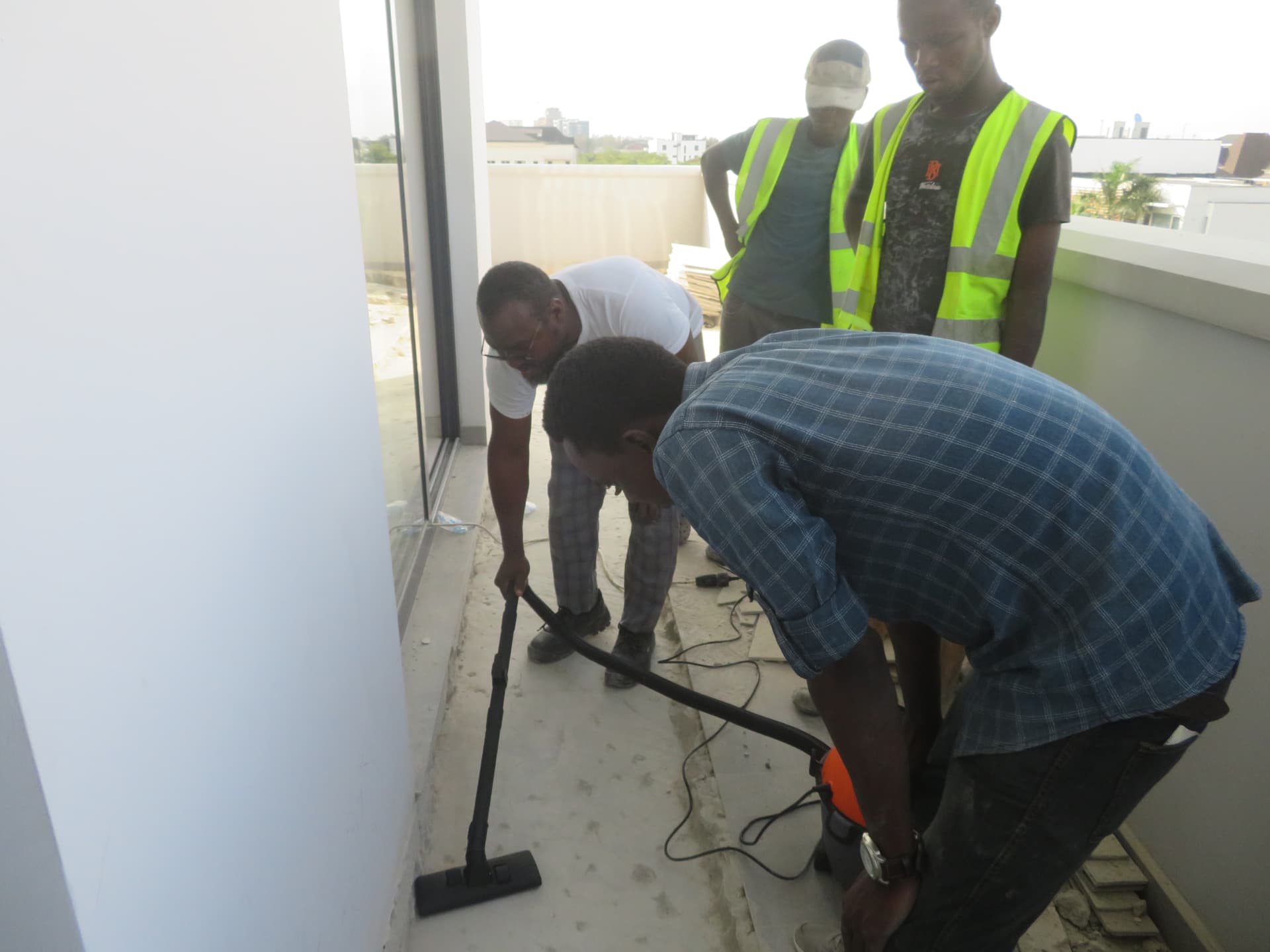

Vacuuming the prepared concrete groove ahead of laminate bonding

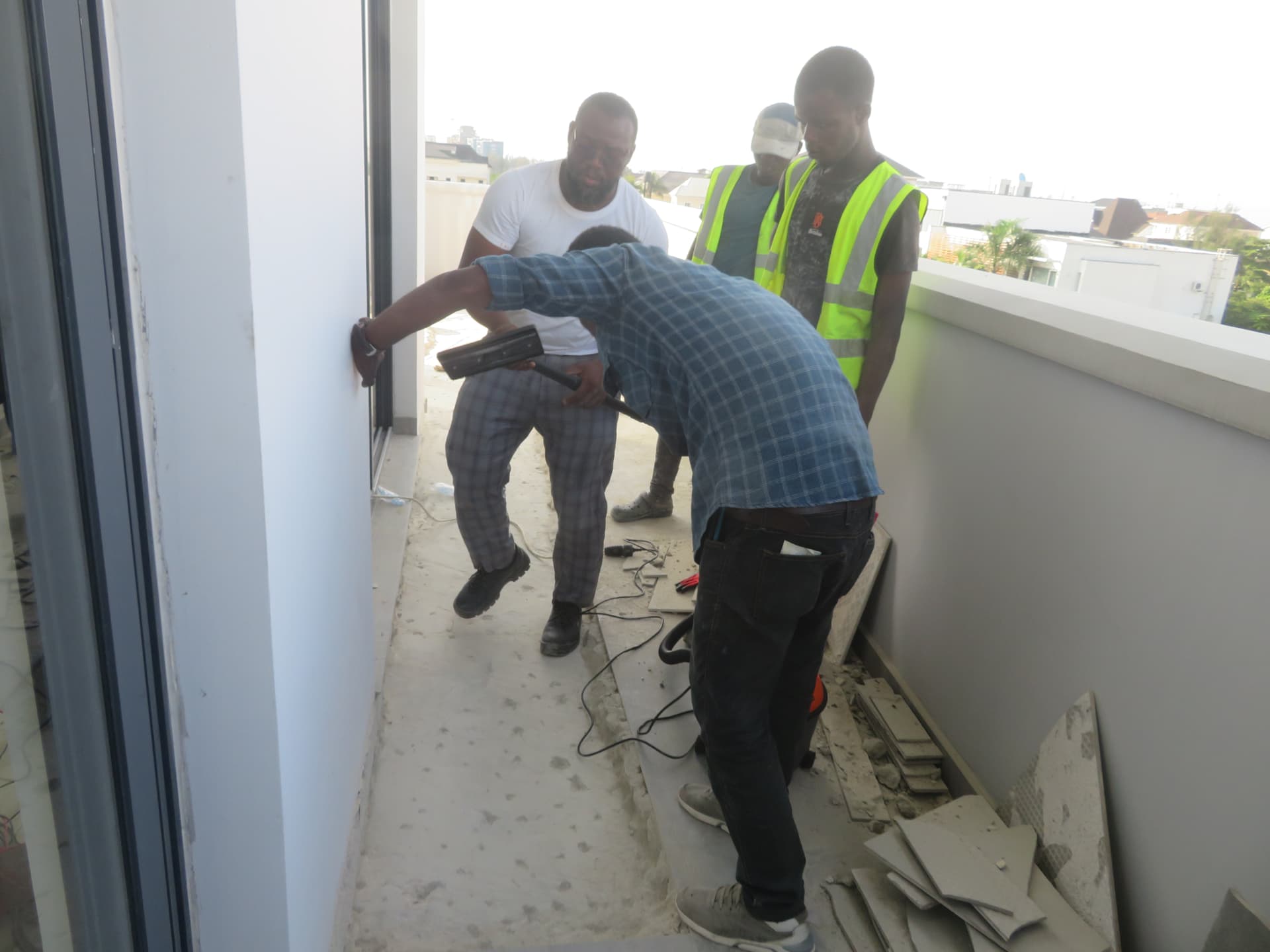

Chasing the concrete surface to receive the carbon laminate

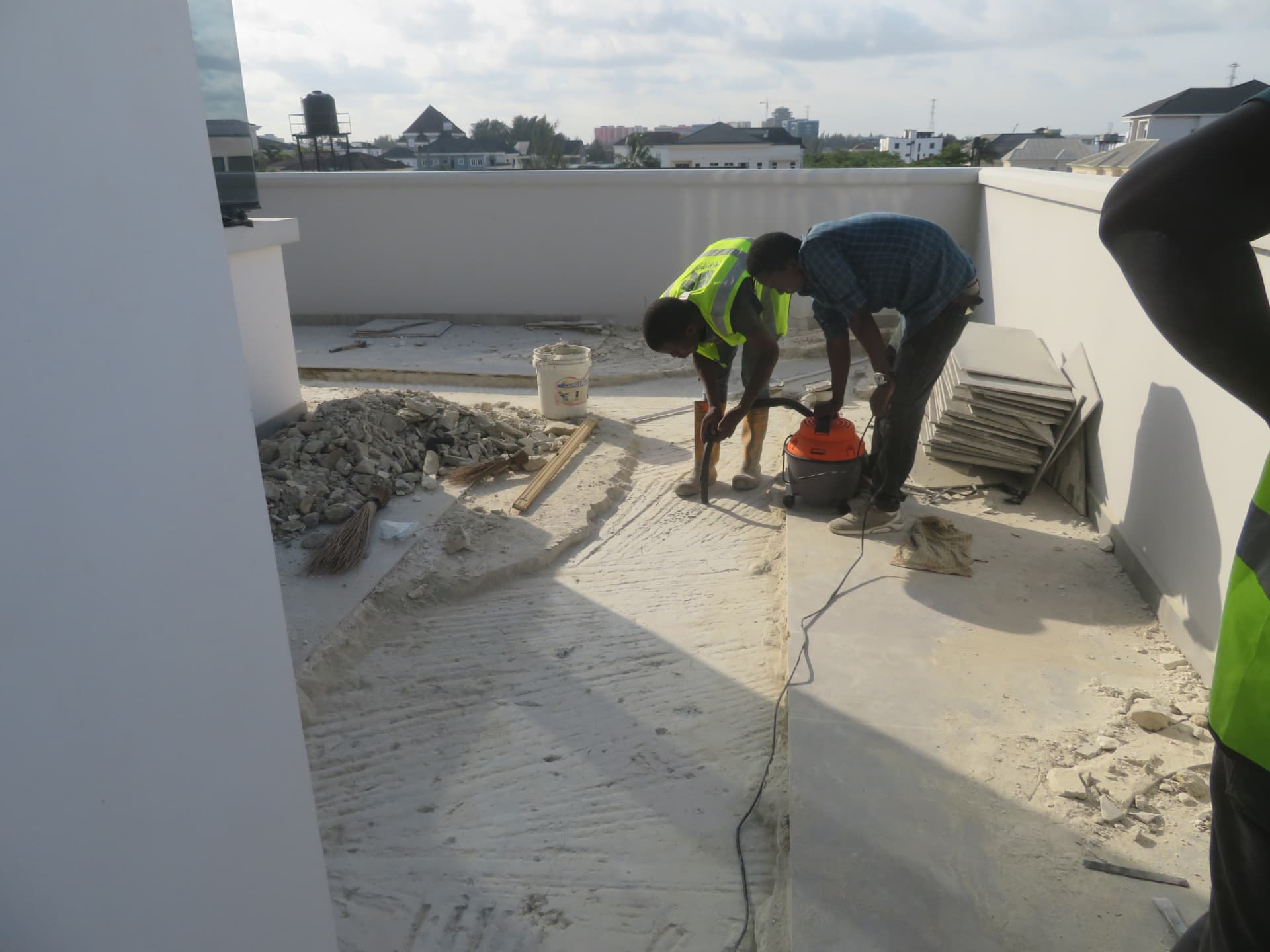

Dust extraction and surface preparation along the terrace slab

Crew working along the balcony slab groove during laminate installation

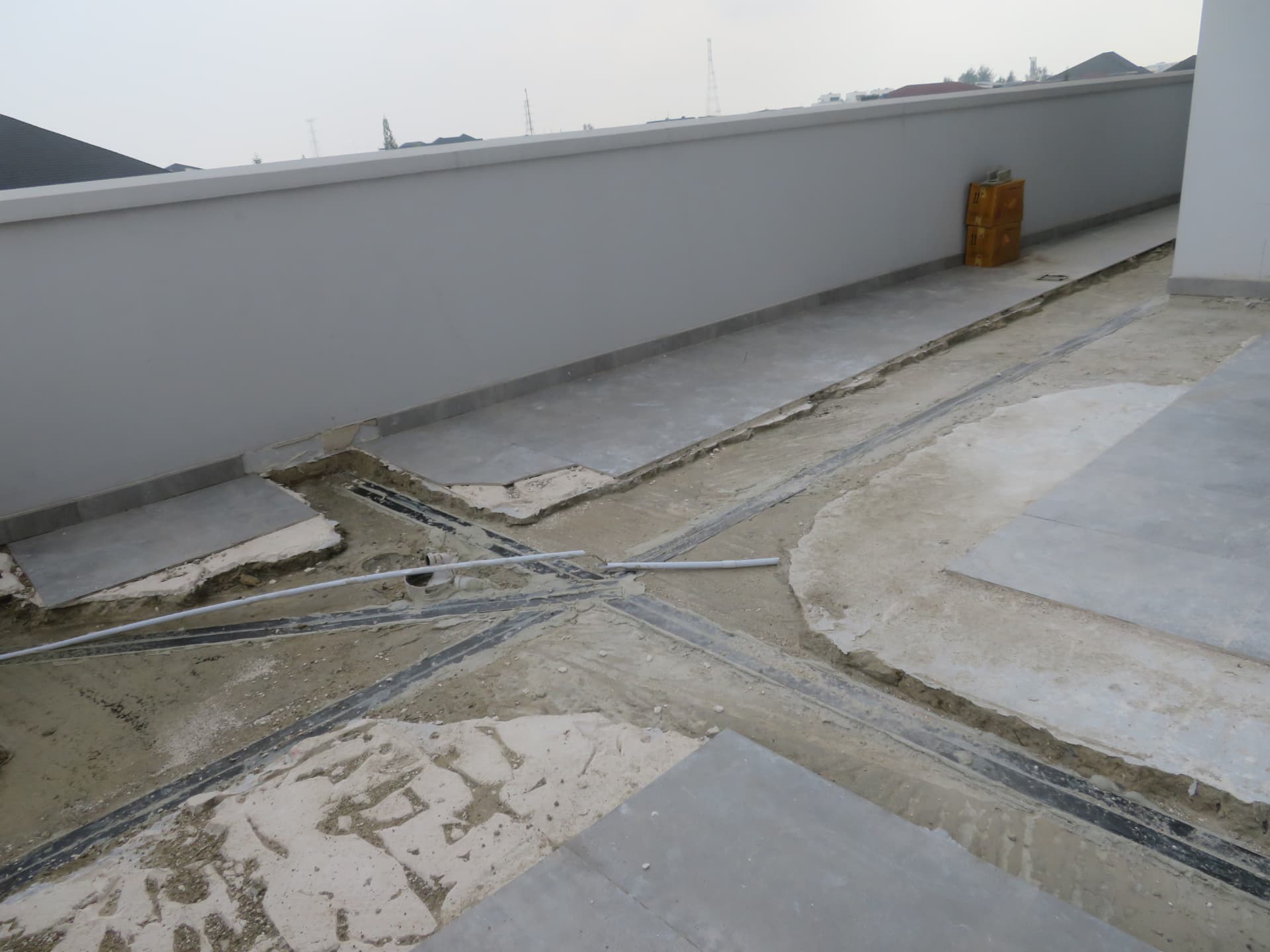

Completed laminate grooves crossing the rooftop slab before finishing

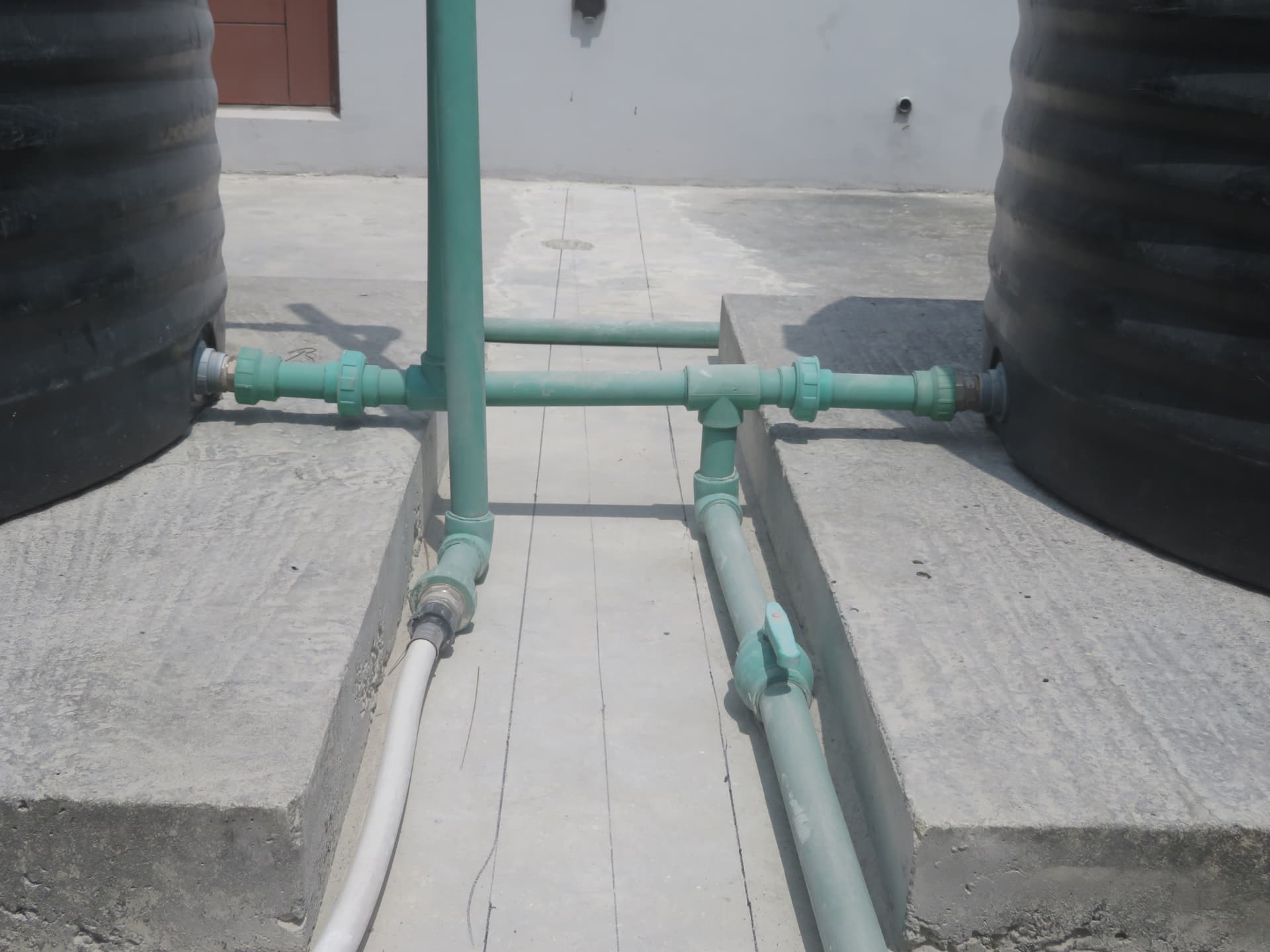

Rooftop services and slab detail at the residential building

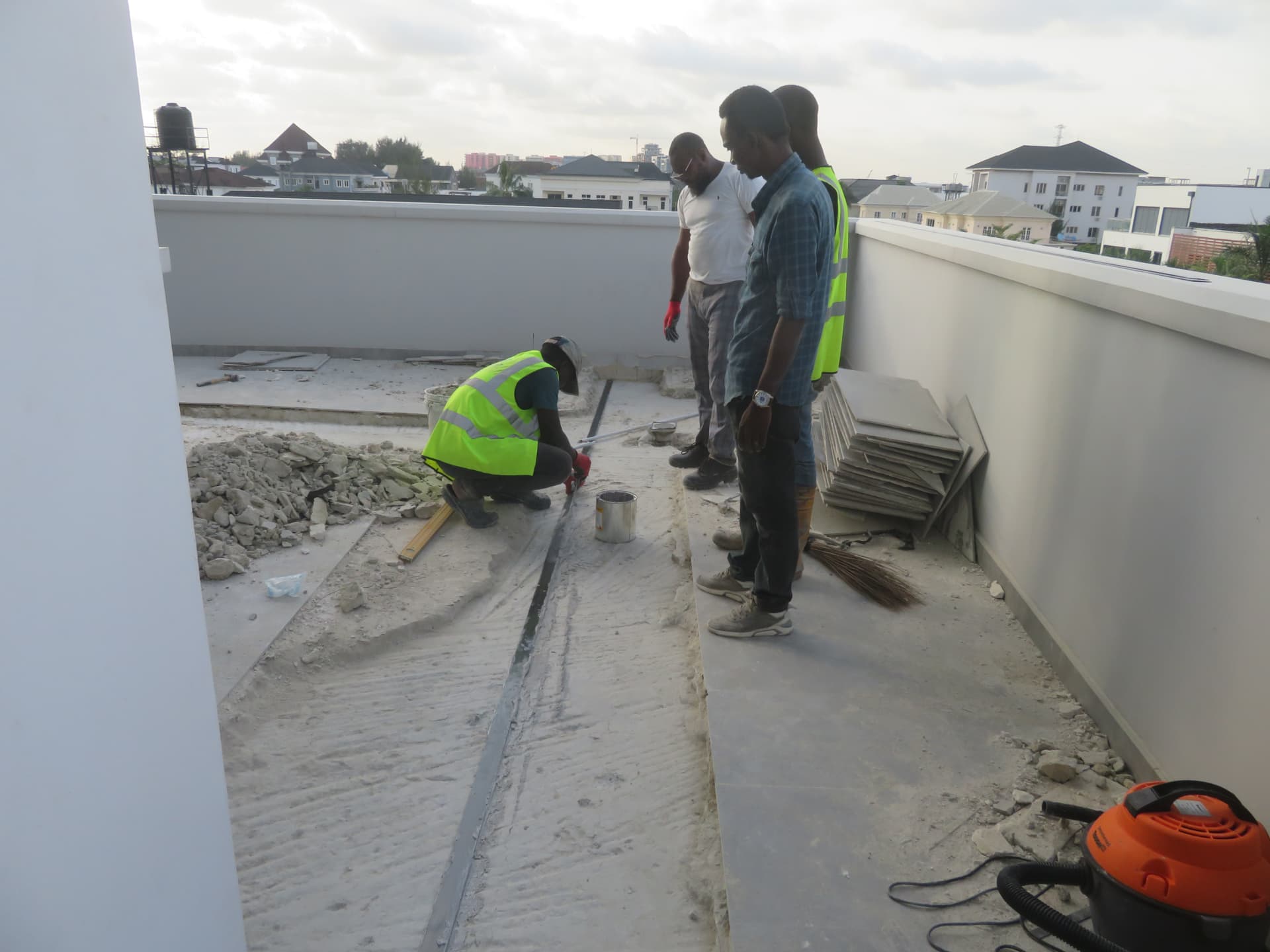

Technician bedding the carbon laminate into the prepared slab groove

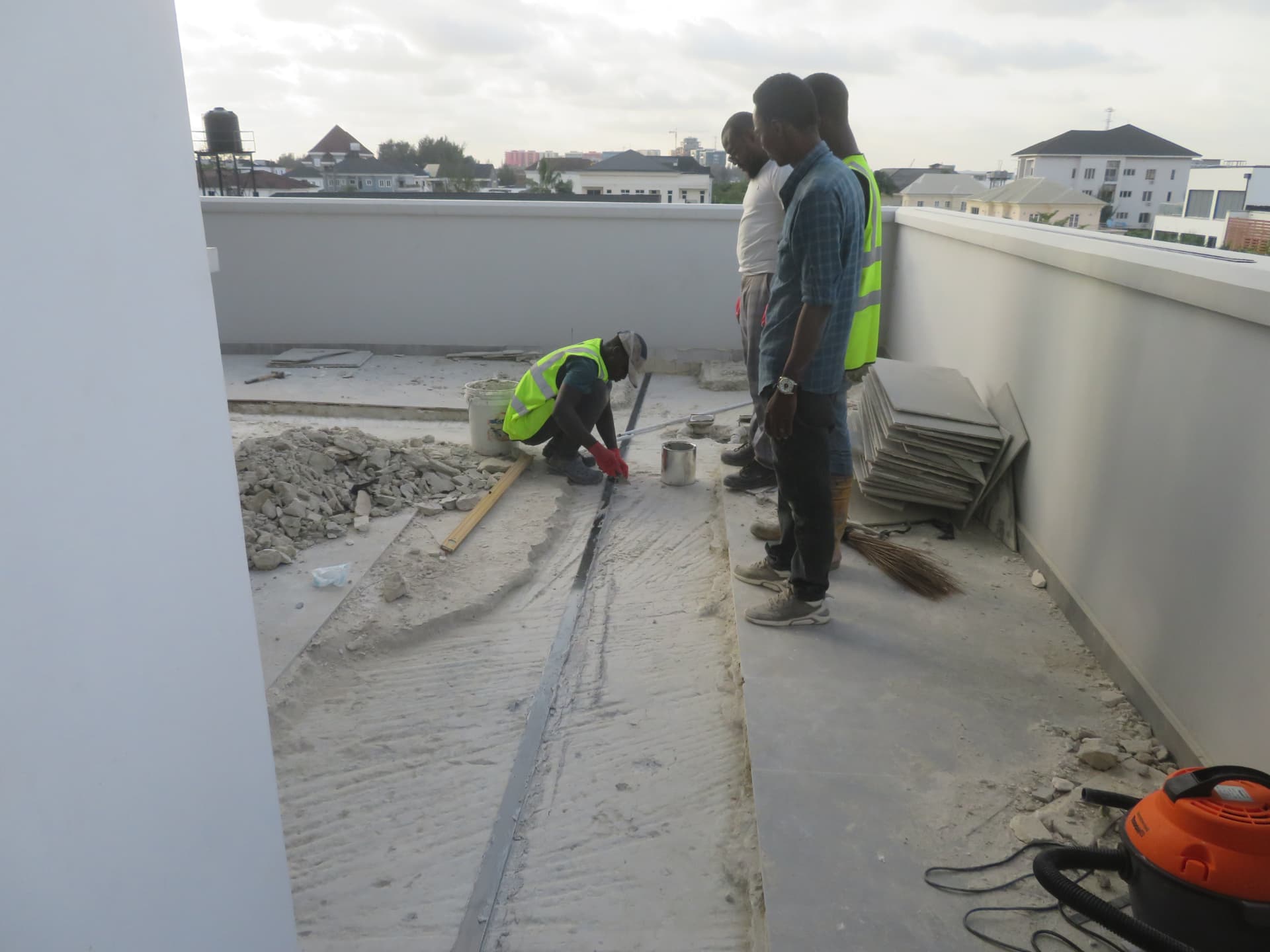

Supervisors inspecting laminate bonding along the rooftop slab

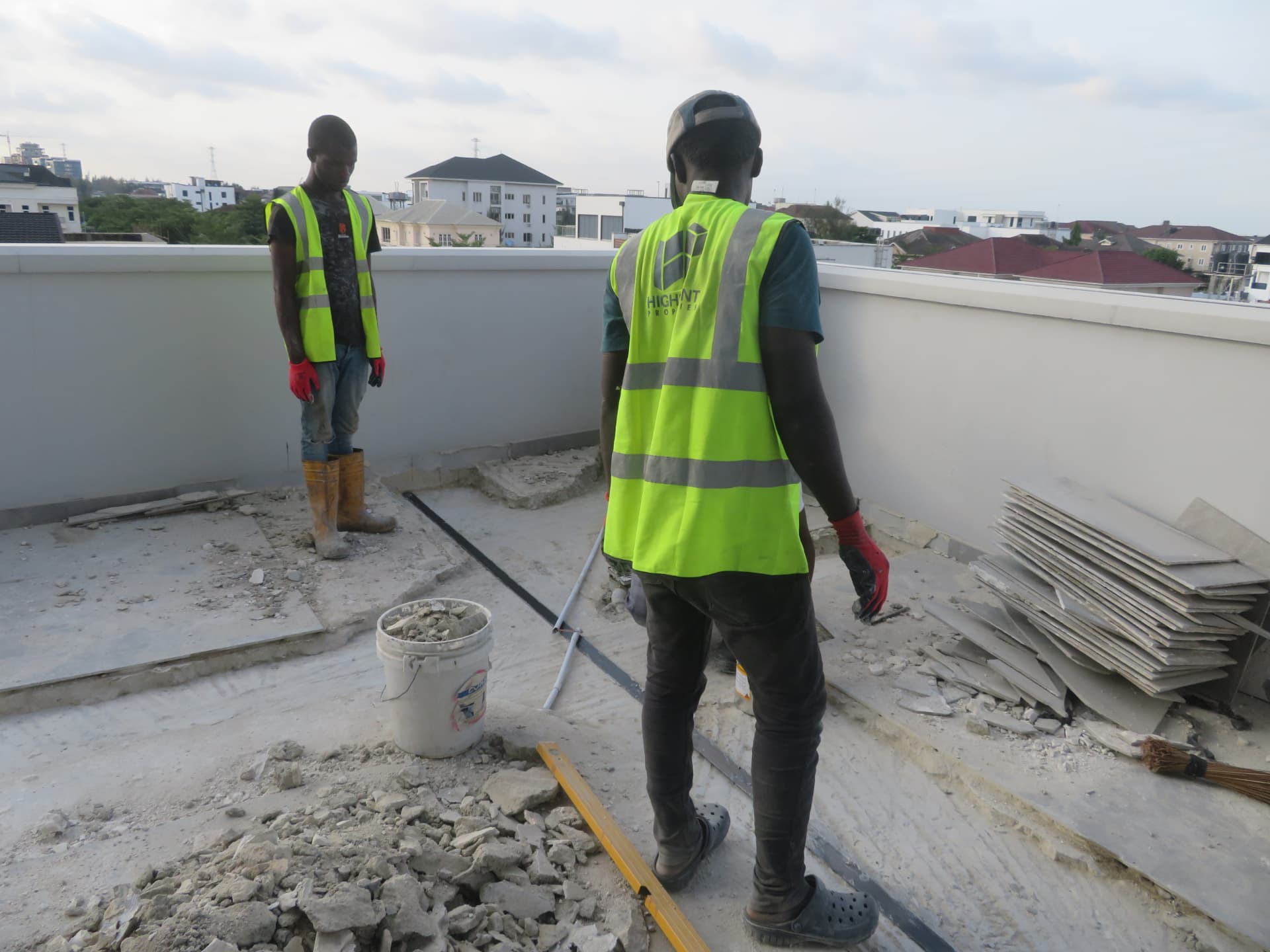

Site team reviewing laminate strip alignment on the terrace

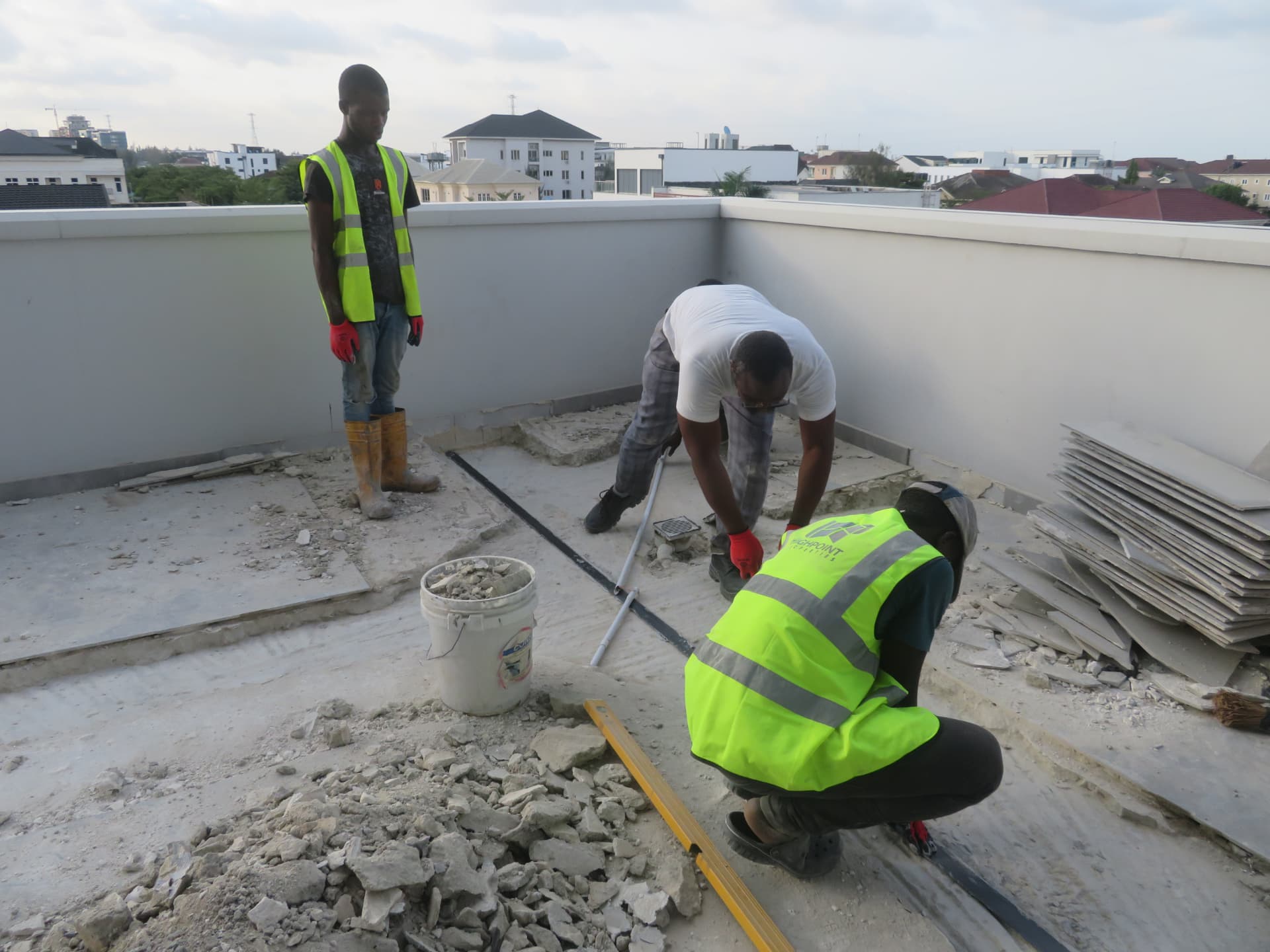

Crew cleaning and levelling the groove before laminate placement

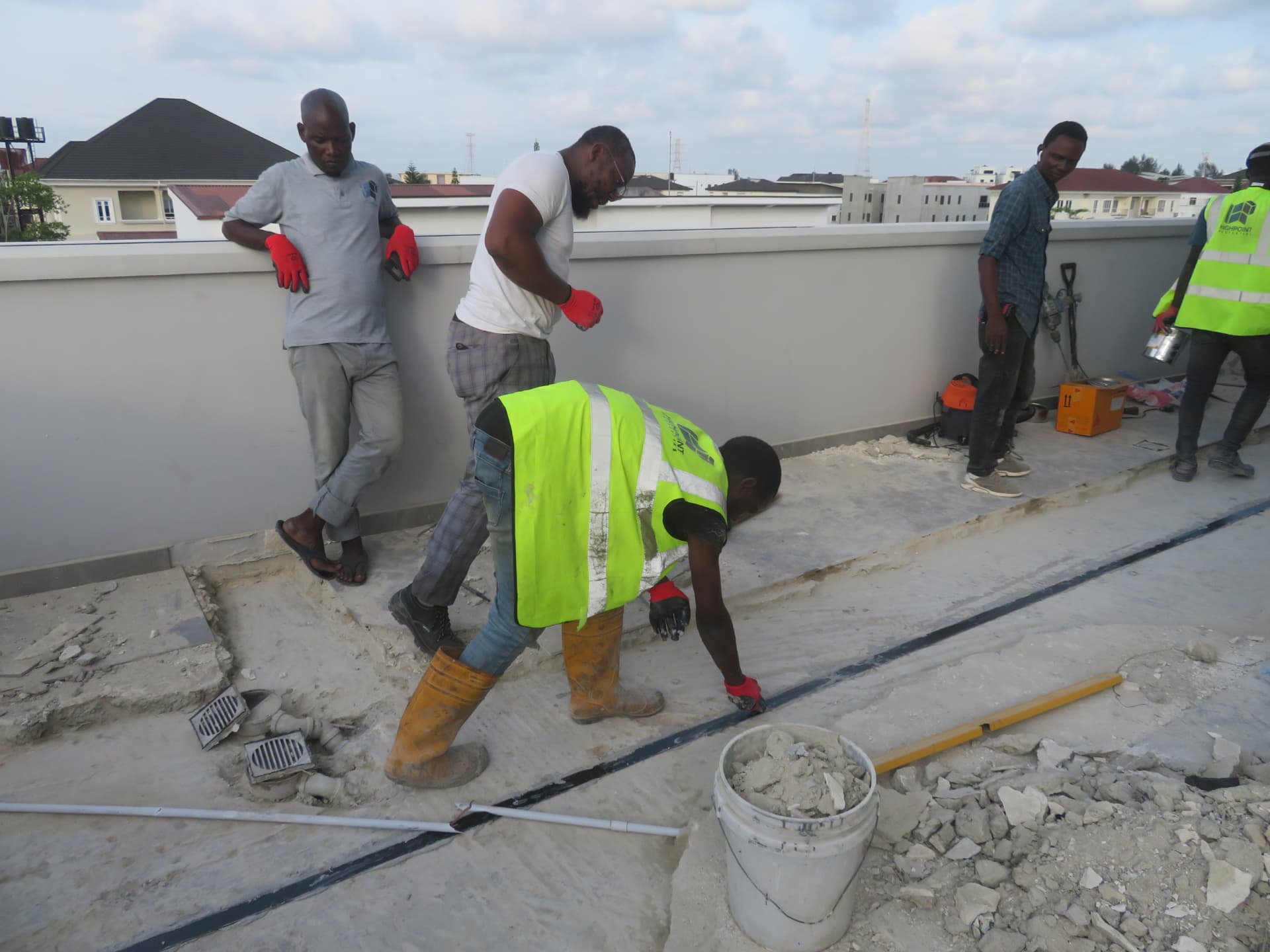

Workers applying epoxy along the cut groove on the roof slab

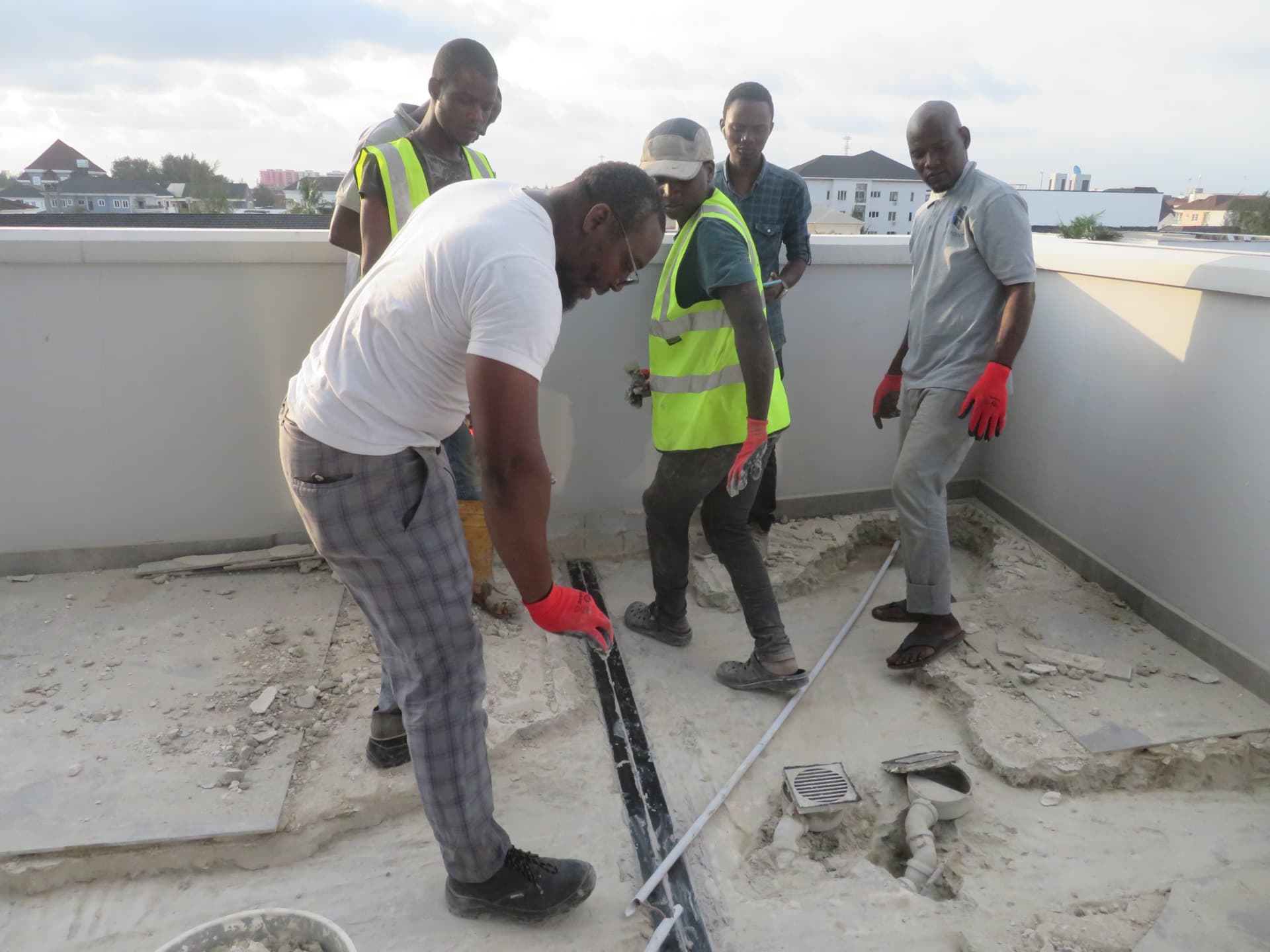

Team measuring and setting out laminate runs across the roof deck

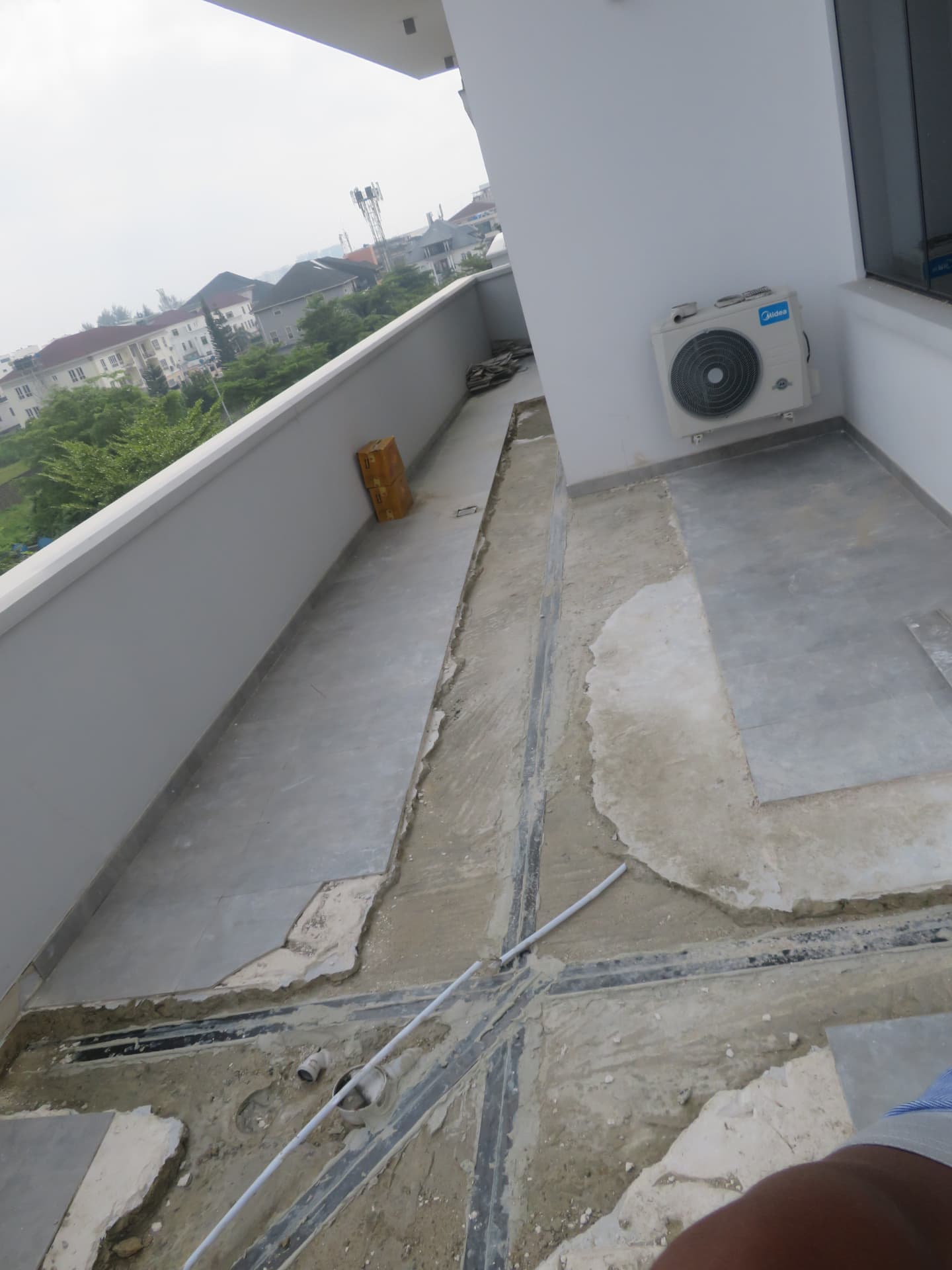

Completed laminate grooves along the balcony before reinstatement

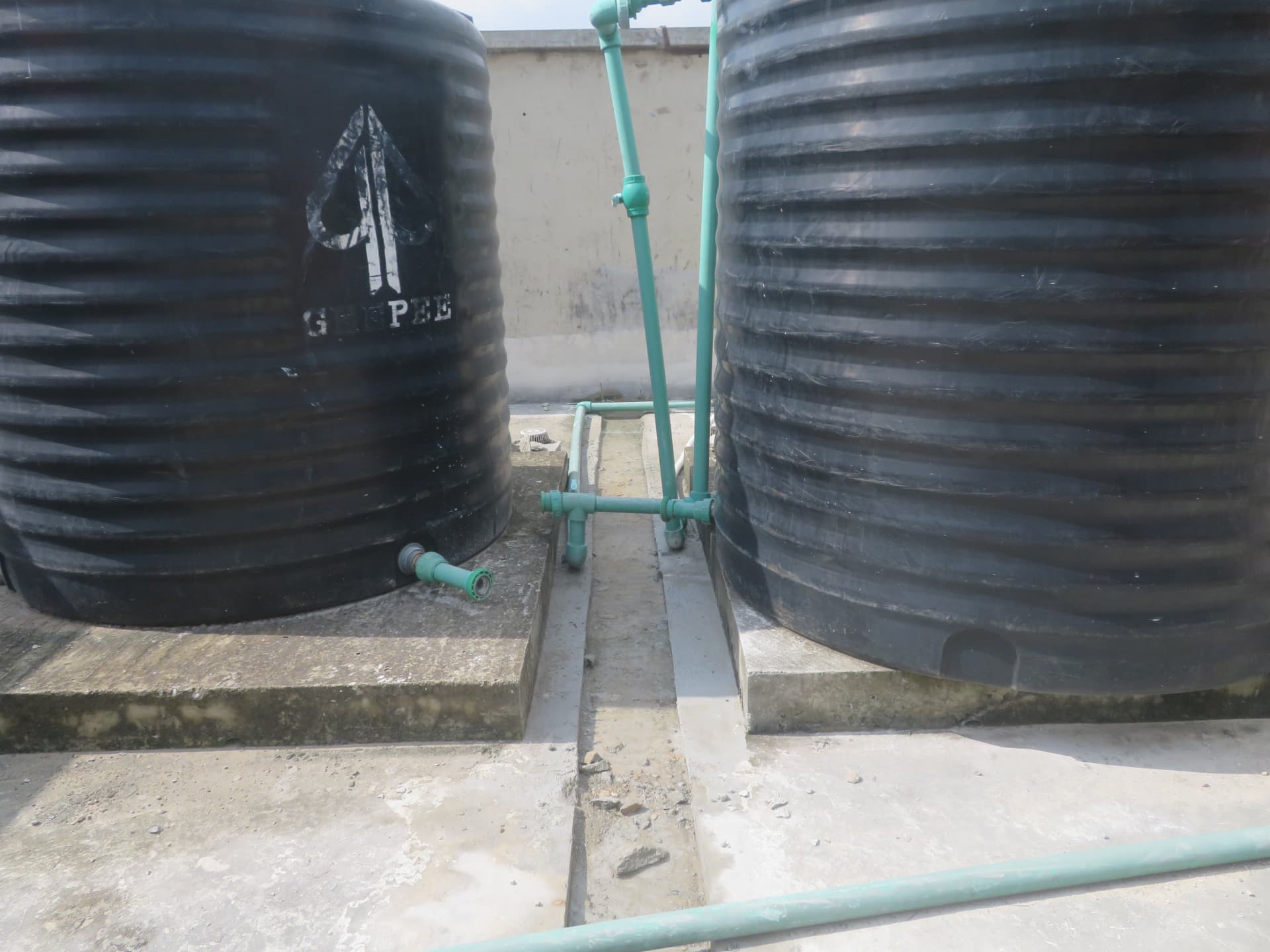

Rooftop water tanks and slab area within the works zone

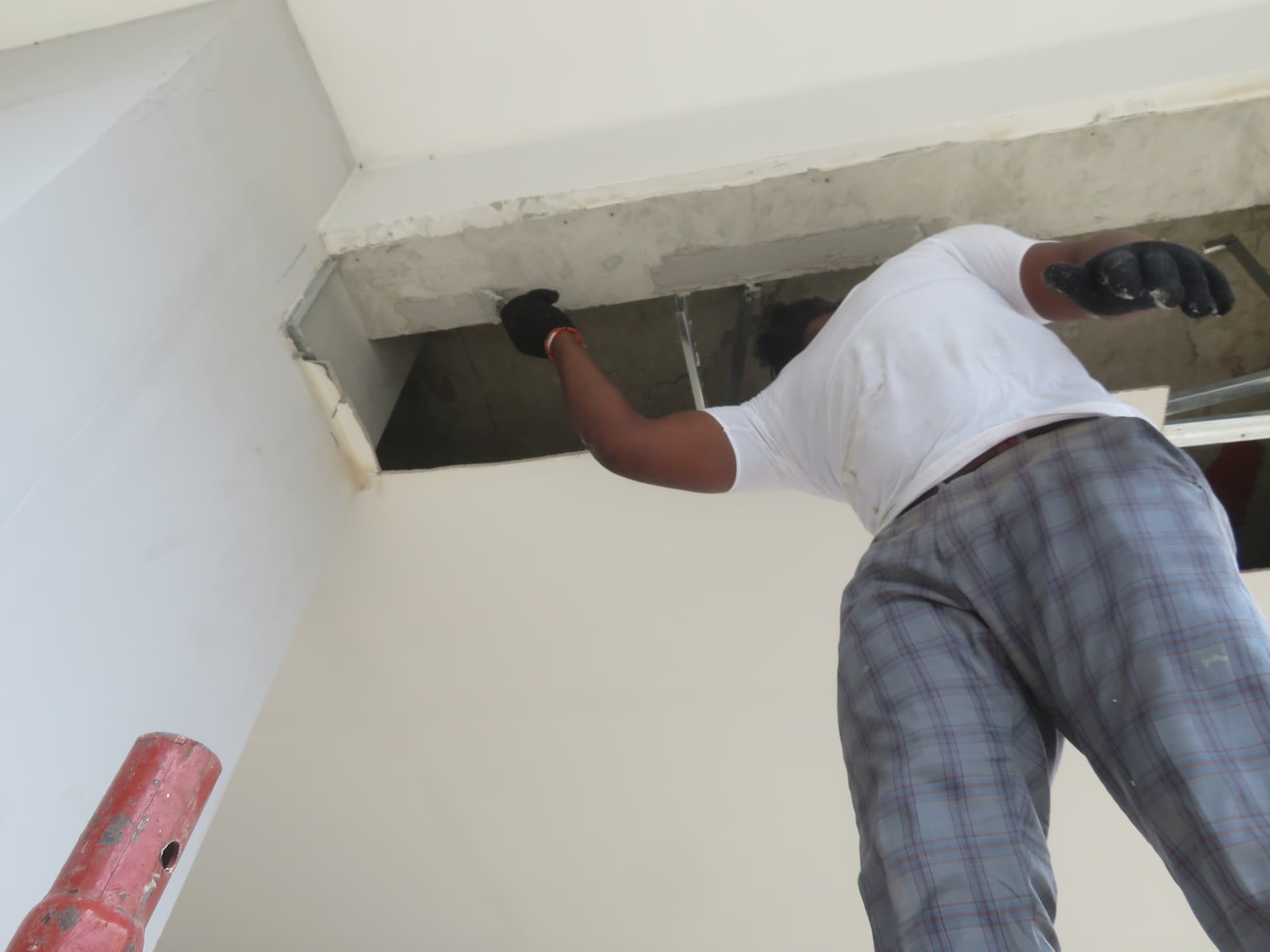

Technician installing carbon laminate to the underside of a beam

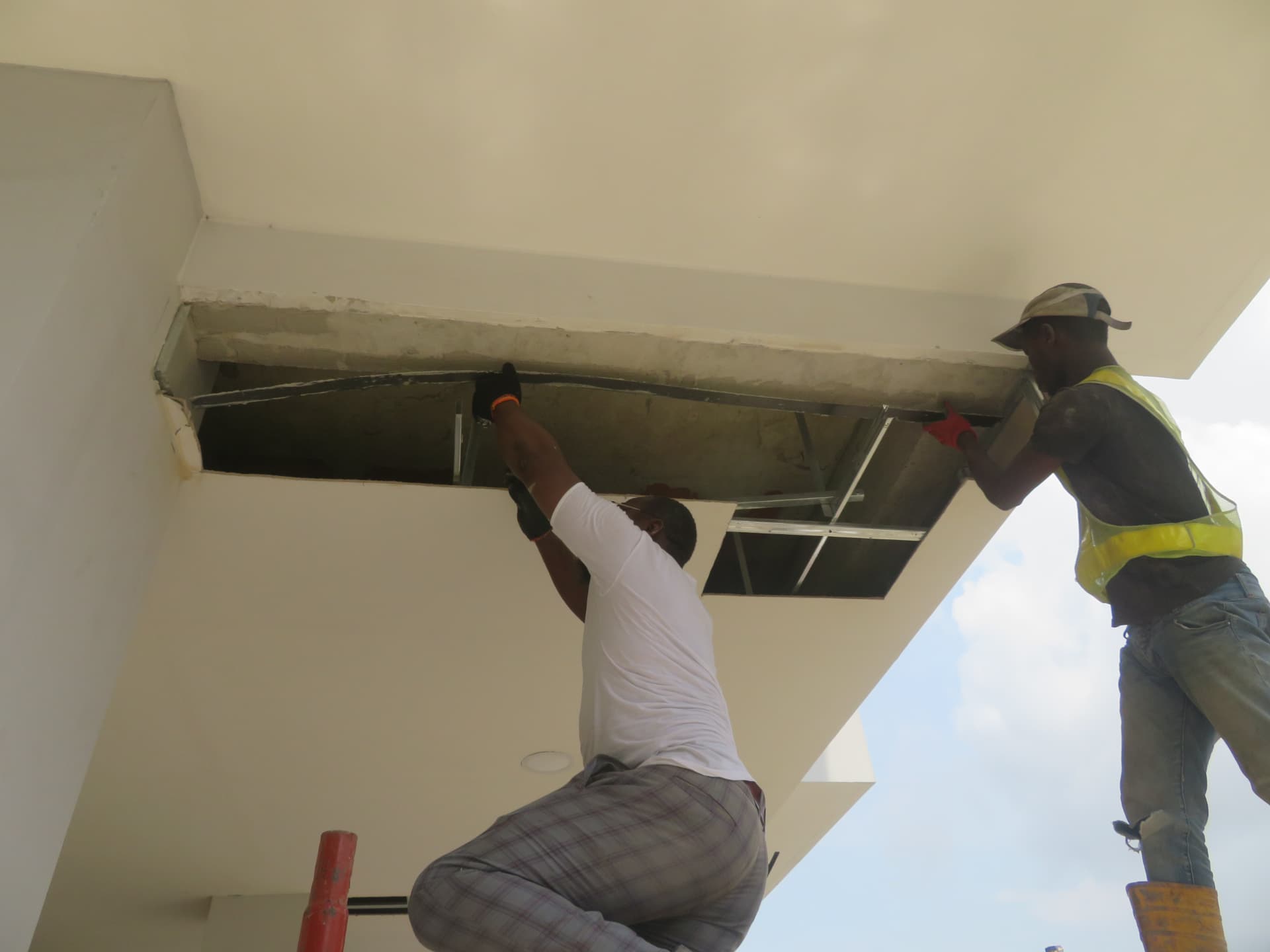

Two technicians bonding laminate to the exposed soffit beam
